TP06B Truck Topper

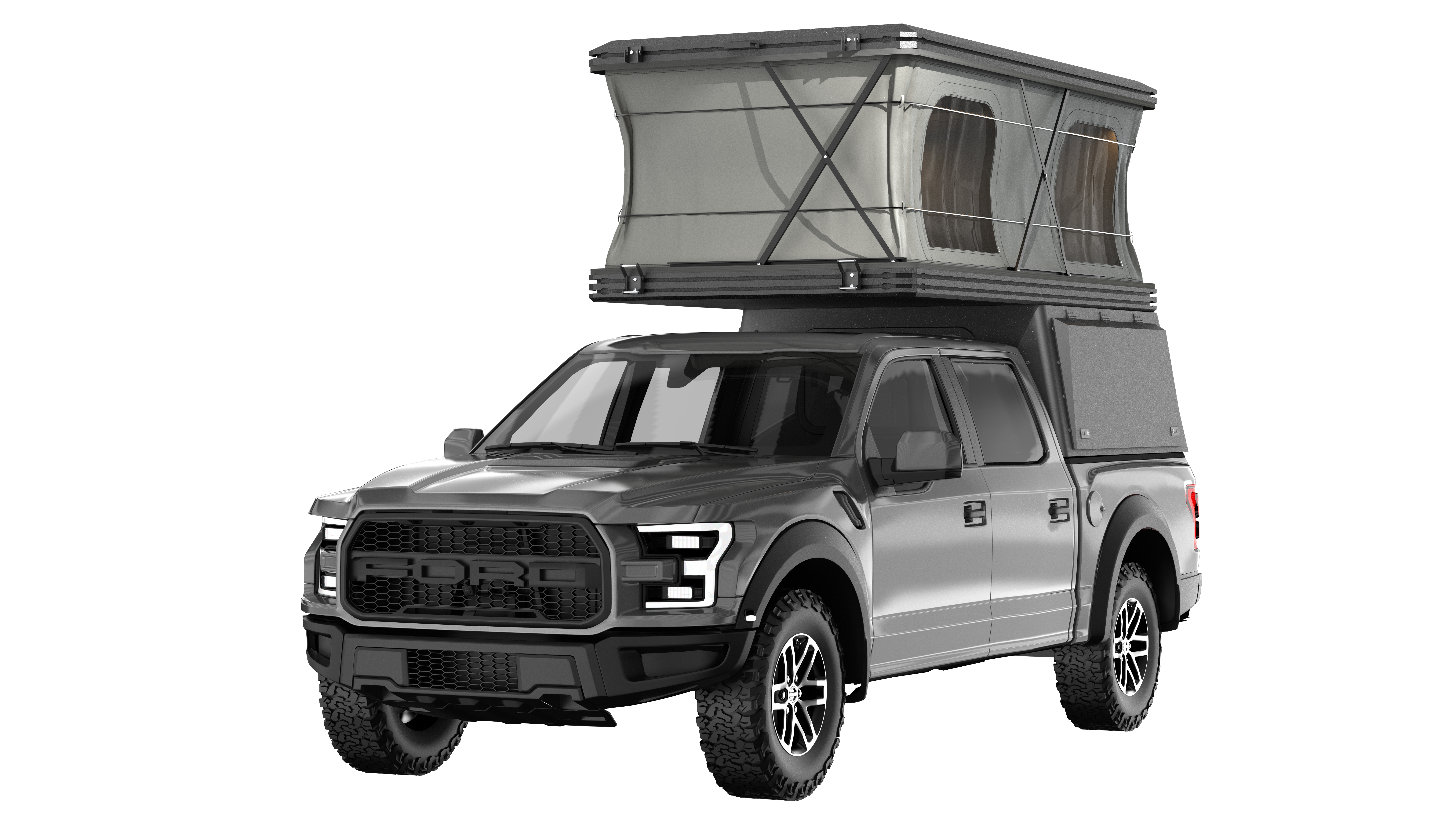

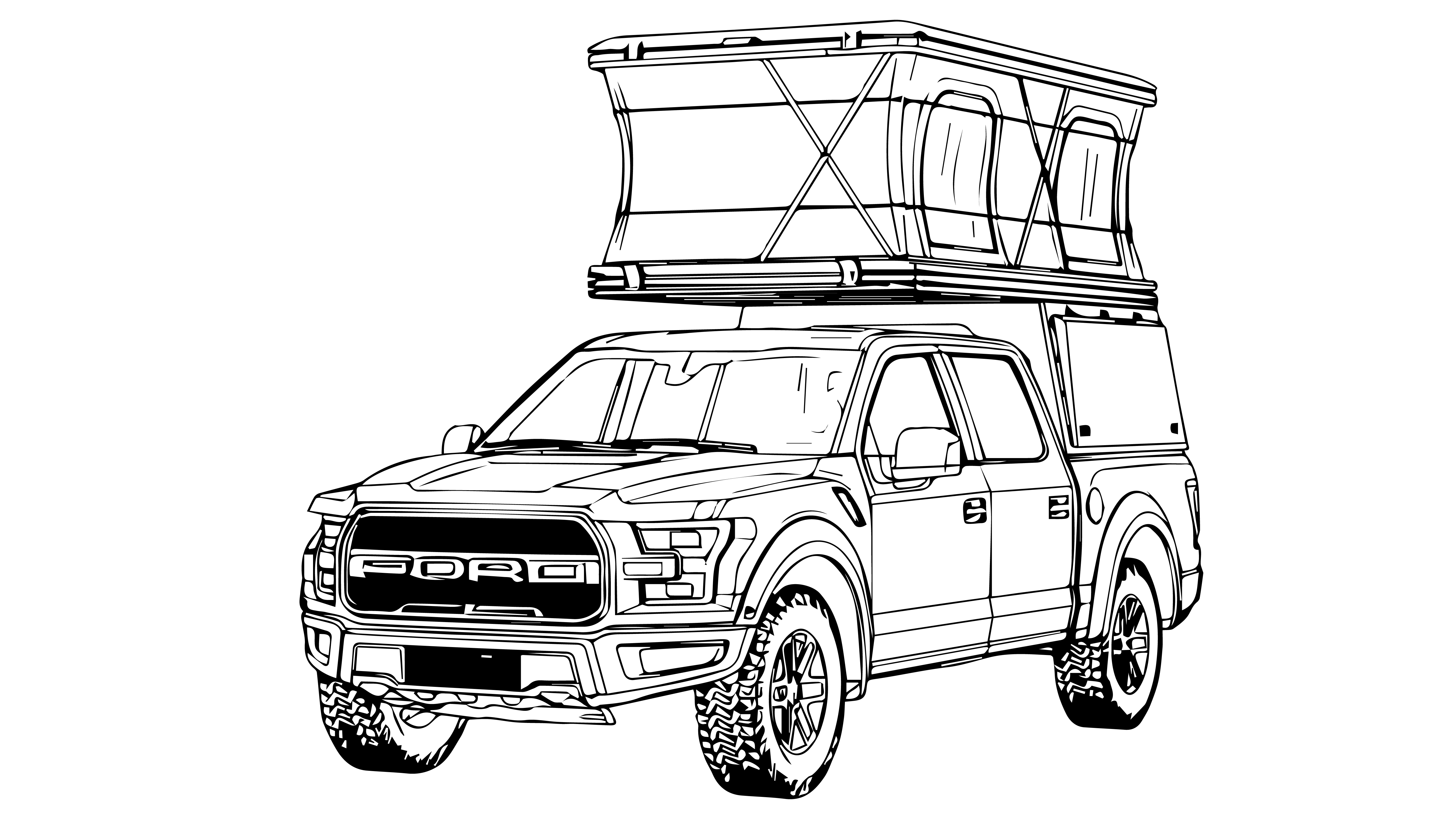

TP06B Truck Topper

Lightweight, Ready, Built for Comfort

TP06B is designed for campers pursuing lightweight travel, ensuring lightweight performance and comfort coexist.

Price: starting from $3000.00
CHAT NOW BUILD & PRICE

KEY FEATURES

Whether you are a solo adventurer seeking a quiet escape in nature or a couple planning a weekend getaway, the TP06B is a lightweight, flexible, and practical camping companion.

Lightweight Design:

At just 440 lbs, it is significantly lighter than comparable models, reducing suspension load and fuel consumption for easier long-distance off-road travel.

Safe and Ventilated:

The sliding glass window can be locked from the inside and slides forward and backward for ventilation.

Triple-Layer All-Weather Windows:

Six large windows offer wide views, each with TPU, insect mesh, and waterproof layers for flexible use.

1-Minute Rapid Open/Close

One person can open or close it in under 1 minute, with the fabric automatically folding into the shell when closed.
GET PRODUCT FEATURES NOW

The TP06B Fabric Pop-Up Truck Topper is more than just gear — it’s where your lightweight journey begins. Compact when closed, spacious when opened, it’s engineered to maximize comfort. With a welded aluminum roof built for rugged trails and triple-layer all-weather windows that open up the view, every mile feels effortless and easy.

TP06B Fabric Pop-Up Camper - Interior Overview

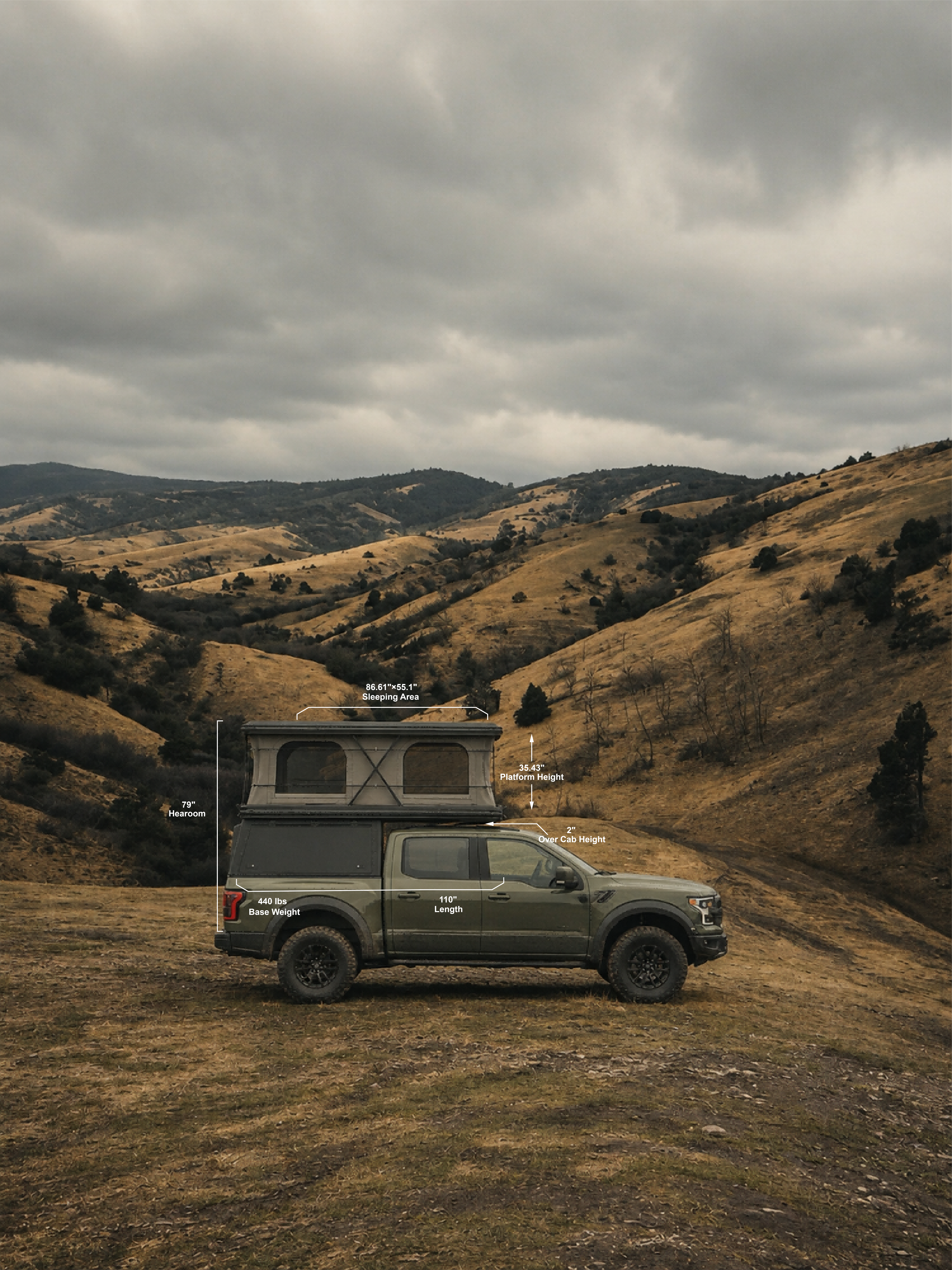

BASIC DIMENSIONS & WEIGHT

Pop-up size: 109.1 × 59.1 × 37.4 in when open; 109.1 × 59.1 × 8.3 in when closed. Bed platform height: 35.4 in. Weight: 441 lb.

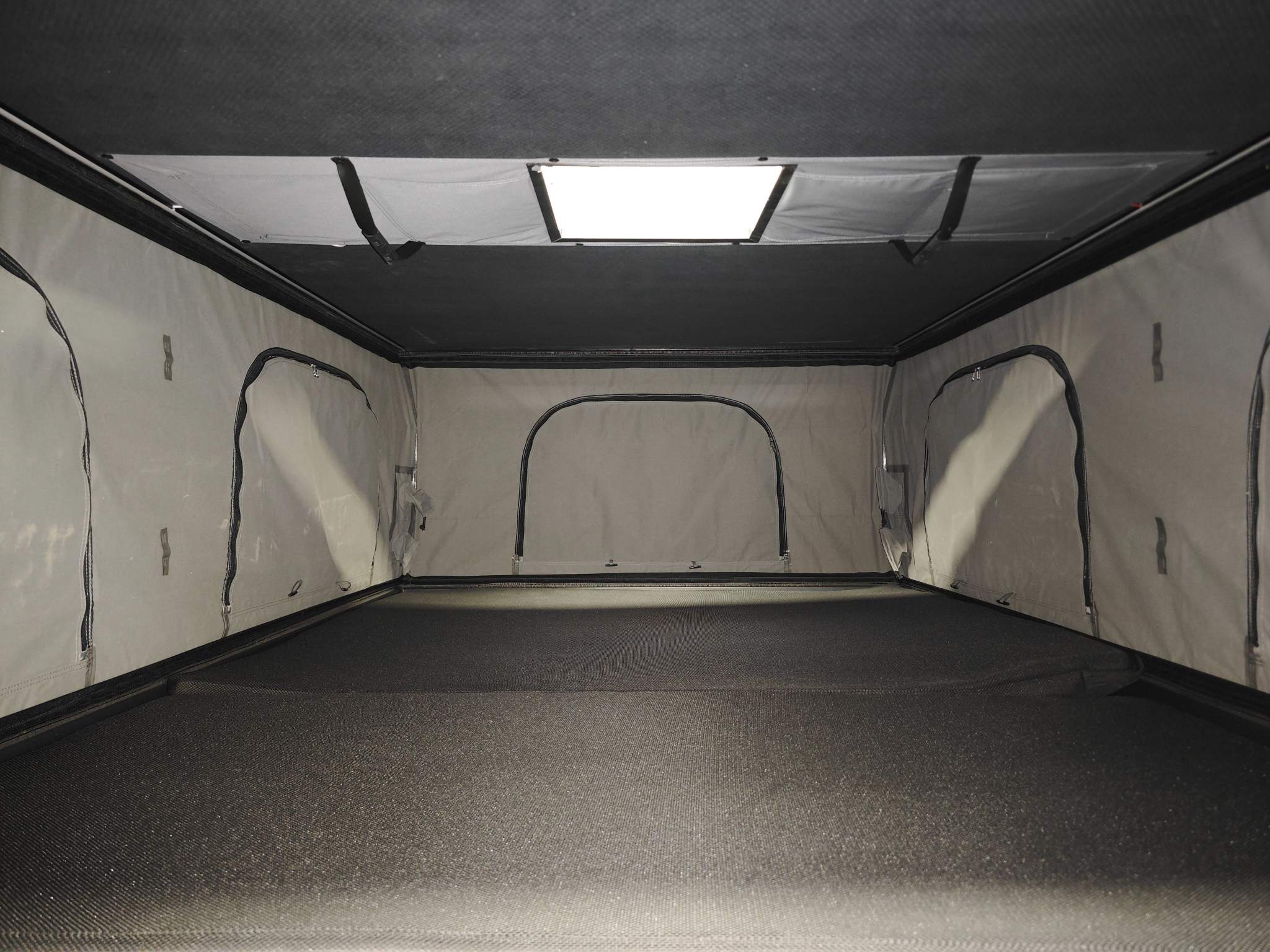

SPACIOUS SLEEPING AREA

The 86.6 × 55.9 in sleeping area includes 1-inch aluminum composite tent floors rated for up to 474 lb, plus 2-inch high-density foam mattress pads with washable covers.

STAND-UP LIVING SPACE

The sleeping platforms slide to create a comfortable living area underneath with enough height to stand up.

TRIPLE-LAYER TENT WINDOWS

Each window combines a transparent layer, mosquito-proof screen, and tear-resistant waterproof outer layer for comfort and protection.

LED LIGHTING & STORAGE

Integrated LED lighting with a USB interface and an overhead storage bag keeps essentials organized and accessible.

FAST POP-UP DEPLOYMENT

Four 304 stainless steel X-bracket sets and four concealed hydraulic rods allow the pop-up to open or close in less than one minute.

WINTER LINER READY

An optional winter lining can be added to improve insulation and comfort in cold-weather conditions.

SECURE, UNOBSTRUCTED ACCESS

Three keyed, lockable doors open wide for easy gear access, with no crossbars limiting the interior space. Front and rear sliding glass windows can be locked from inside.

MOLLE PANELS & M8 MOUNTS

MOLLE panels on three sides and M8 connection points throughout provide flexible mounting options for equipment and accessories.

CUSTOMIZABLE TO YOUR NEEDS

OWNER INSTALLATION GUIDE

How We Build Custom Truck Campers | Full Factory Tour How We Build Custom Truck Campers | Full Factory Tour QIAN Camper VanUnit - 15-Min Van Conversion Kit (Part 2/Room Tour) QIAN Camper VanUnit - Convert Your Van in 15 Min (Part 1/How It Works) How to Assemble the TP-07B Full Barn Door Version | QIAN Camper Owner's Guide How to Assemble the TP-07B Full Barn Door Version | QIAN Camper Owner's Guide How to Install the 270 Awning, Awning Walls & Shower Tent| QIAN Camper Owner's Guide How to Install the Roof Rack | QIAN Camper Owner's Guide How to Assemble the TP07B | QIAN Camper Owner's Guide How to Assemble the TP-07W Canopy | QIAN Camper Owner's Guide TP06A Wedge Tent Topper | Honest Review From North America Aluminium case 270°awning with side wall

TP06B TRUCK TOPPER - INTERIOR HIGHLIGHTS

TP06B Truck Topper
Customization
TP06B Truck Topper
TP06B Truck Topper

Step 1: Online Design

Enter your requirements in the configurator for real-time preview (click to access or contact us).

Step 2: Confirm & Deposit

Finalize requirements with our team, pay $500 deposit (applies to 50% of production cost). Fully refundable if canceled before production starts.

Step 3: Pay 50% & Produce

Pay remaining 50% after design finalization. Production begins upon payment receipt.

Step 4: Review & Balance

After production, photos/videos of assembly testing are provided for your review. Pay balance upon approval, then we ship.

Step 5: Self-Setup

Detailed installation and usage videos are included to guide you through setup.

CUSTOMIZE NOW

FREQUENTLY ASKED QUESTIONS

The sleeping platform features a slide-track design that shifts fore and aft. When pushed to the side, it creates a 23.6-inch (600 mm) wide clearance channel, allowing you to enter and exit the tent through the canopy. Built from 1-inch aluminum composite panels, the platform has a rated load capacity of 474 lbs (215 kg) and is stable and reliable once in position.
The topper features 4 windows (2 on each side), each with a triple-layer independent construction: a clear-view PVC layer for sightseeing, a mesh layer for summer insect protection, and an anti-tear waterproof layer for rainy weather. Each layer can be opened or closed individually, allowing you to switch modes as needed. All seams are equipped with quality weather stripping, delivering reliable waterproof and dustproof protection.
Absolutely. A single person can deploy or collapse the entire pop-up canopy in under 60 seconds. The TP06B utilizes four 304 stainless steel X-frames paired with concealed gas struts for smooth and stable vertical lifting.
Designed for 5-ft truck beds, the TP06B has a dry weight of approximately 440 lbs (200 kg)—comprising a 176 lb (80 kg) base and a 264 lb (120 kg) tent. This lightweight design minimizes stress on your truck's suspension and preserves fuel economy. It comes standard with 4-season waterproof canvas. For cold-weather adventures, an optional winter thermal insulation liner is available to keep the interior warm.
